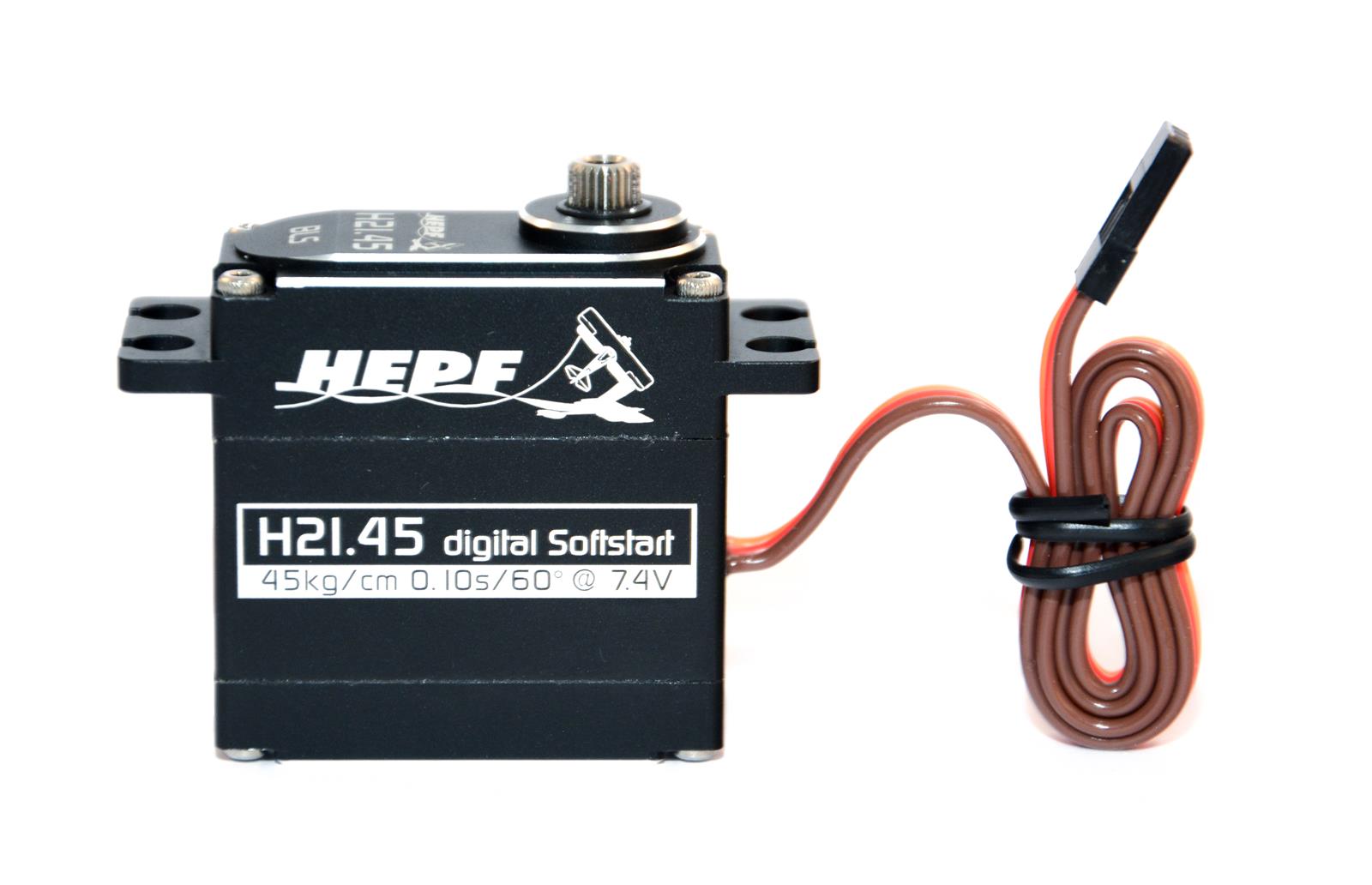

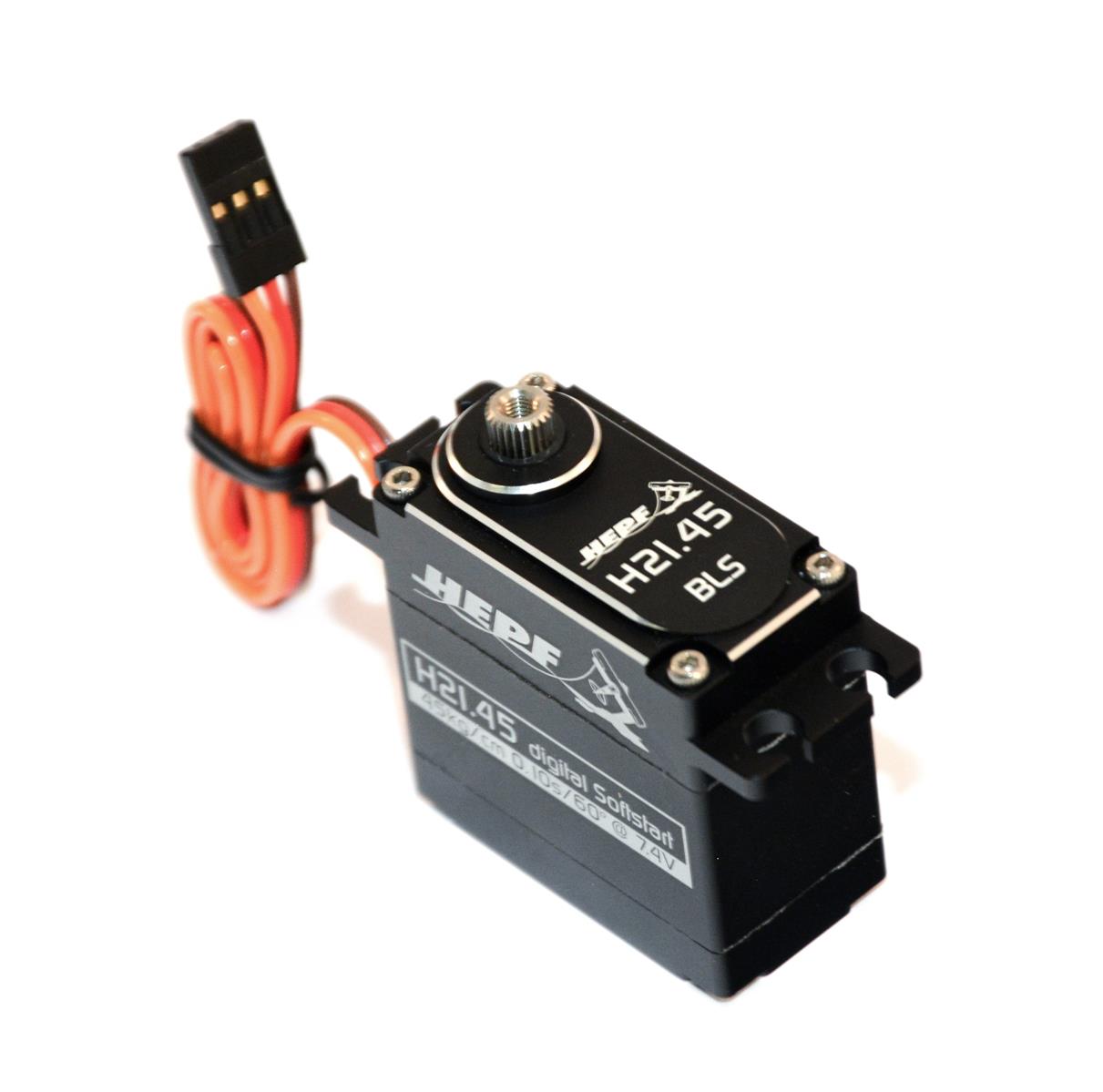

HEPF Servo H21.45 – 45Kg*0.10s/60° @7,4V
Softstart
Spannungsbereich: 5.0…8.4V
Technische Angaben:
Softstart
Drehmoment 36.0 kg*cm 45.0 kg*cm @6.0V @7.4V
Geschwindigkeit 0.13 s/60° 0.10 s/60° @6.0V @7.4V
Getriebe metall Gear
Gewicht 92,7 g
Abmessung 40,6 x 21 x 41,8 mm
Spline 3F / 25T
max. Winkel: 180°
Anschlusskabel #22 AWG
brushless Motor
Storage Temperature Range -20℃ ～ 60℃
Operating Temperature Range -10℃ ～ 50℃
Operating Voltage Range 5.0V ~ 8.4V
Life Time ＞ 1.000.000 (sub/load)
Dead band width 2 μ sec
Pulse width range 800 – 2200 μ sec
Maximum travel 150° (800 – 2200 μ sec)
| Type | 5,0V | 6,0V | 7,4V | 8,4V |
| Operating speed (at no load) | 0,15S/60° | 0,13S/60° | 0,10S/60° | 0,09S/60° |
| Running current (at no load) | 400mA | 430mA | 500mA | 500mA |
| Stall torque (at locked) | 30,0kg.cm | 36,0kg.cm | 45,0kg.cm | 49,0kg.cm |
| Stall current (at locked) | 3,5A | 4,2A | 5,0A | 5,5A |
| Idle current (at stopped) | 10mA | 10mA | 10mA | 10mA |
