DETAILS
Application / Suitable
| Priority for 3D EP Aircraft, F5J, F3K, F3P & DLG, HLG. |
Electrical Specification (Function Of The Performance)
| Torque At 6.0V | 5.1 kg-cm / 70.8 oz-in |
| Torque At 7.4V | 6.4 kg-cm / 88.9 oz-in |
| Torque At 8.4V | 7.5 kg-cm / 104.2 oz-in |
| Speed At 6.0V | 0.14 sec / 60° |
| Speed At 7.4V | 0.11 sec / 60° |
| Speed At 8.4V | 0.10 sec / 60° |
Protection Mechanism
| Soft Start Protection | Soft start to a neutral position. |
| Over Voltage Protection | Over 9.0V drive the protection mode and 8.4V return to normal mode. |
| Low Voltage Protection | Lower than 4.0V, drive the protection mode and 4.5V return to normal mode. |
| Locked Rotor Protection | Stall in 5 sec, output torque goes down. |
| Temperature Protection | Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode. |
Power Supply
| Operating Voltage Range | 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S HV Li-Poly / 2S Li-Fe) |
Control Specification
|
Control System |
Higher-order Algorithm of【STMicroelectronics】32-bit MCU ( Microcontroller Unit ) Frequency：Up to 400Hz / Neutral：1500us or 1520us |
|
Dead Band Width |
0.001ms ( Default：1us) |
|
Potentiometer (Variable Resistor) |
Magnetic Hall-effect Sensor【Non-Contact】instead of traditional VR. |
Mechanical Specifications
| Ball Bearing | Dual Ball Bearings |
| Gear |
All Metal Gears |
| Outside Case | Full One-Piece Aluminum CNC Casing |
| Motor |
High-Premium Coreless Motor |

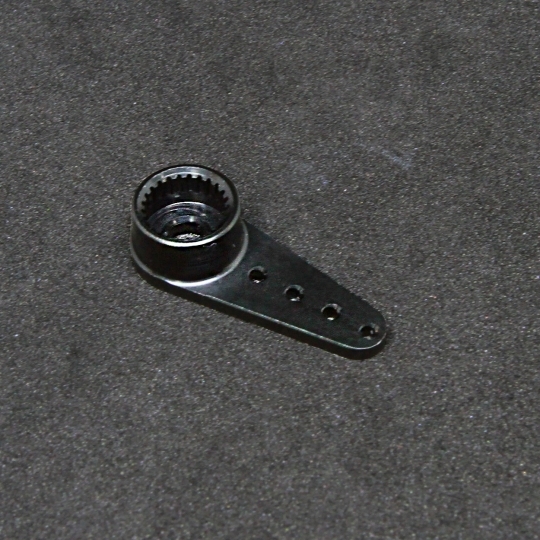

| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
Physical Specifications
|
Dimension (mm) |
23.2 x 10 x 24.3 mm / 0.91 x 0.39 x 0.96 in |
|
Weight (gram) |
12.0 ± 0.5 grams / 0.42 oz ( W/O Cable ) |
|

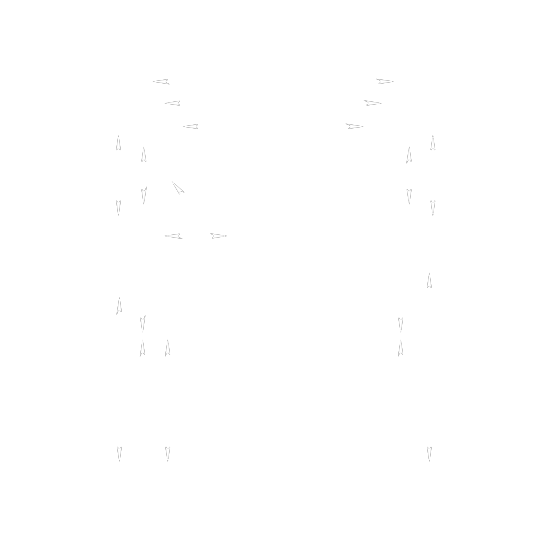

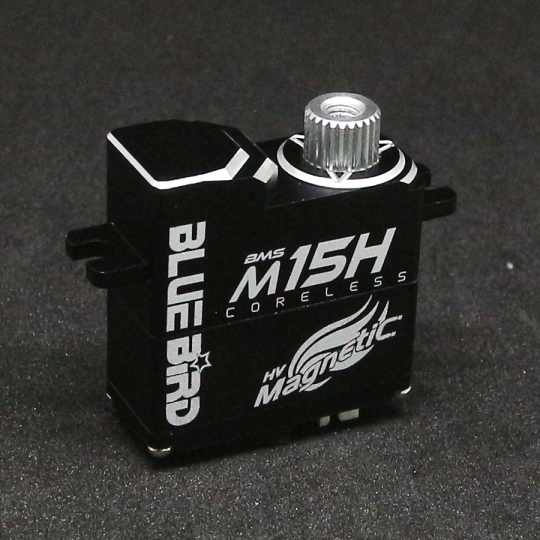

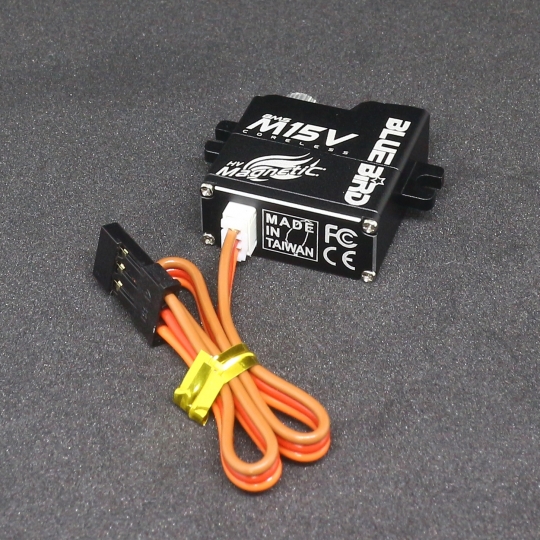

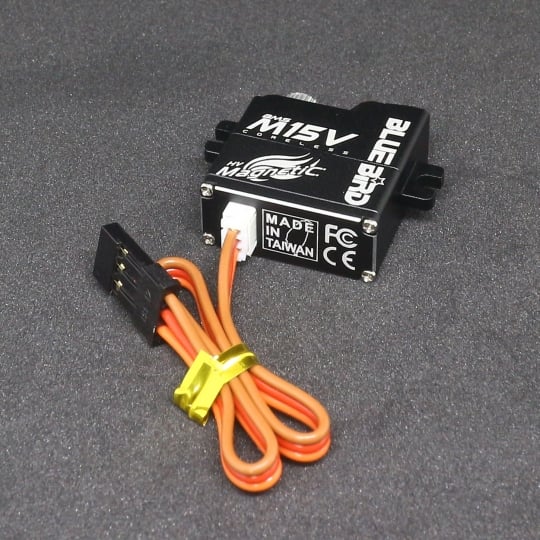

Product Picture / Dimension Sketch |
 |
