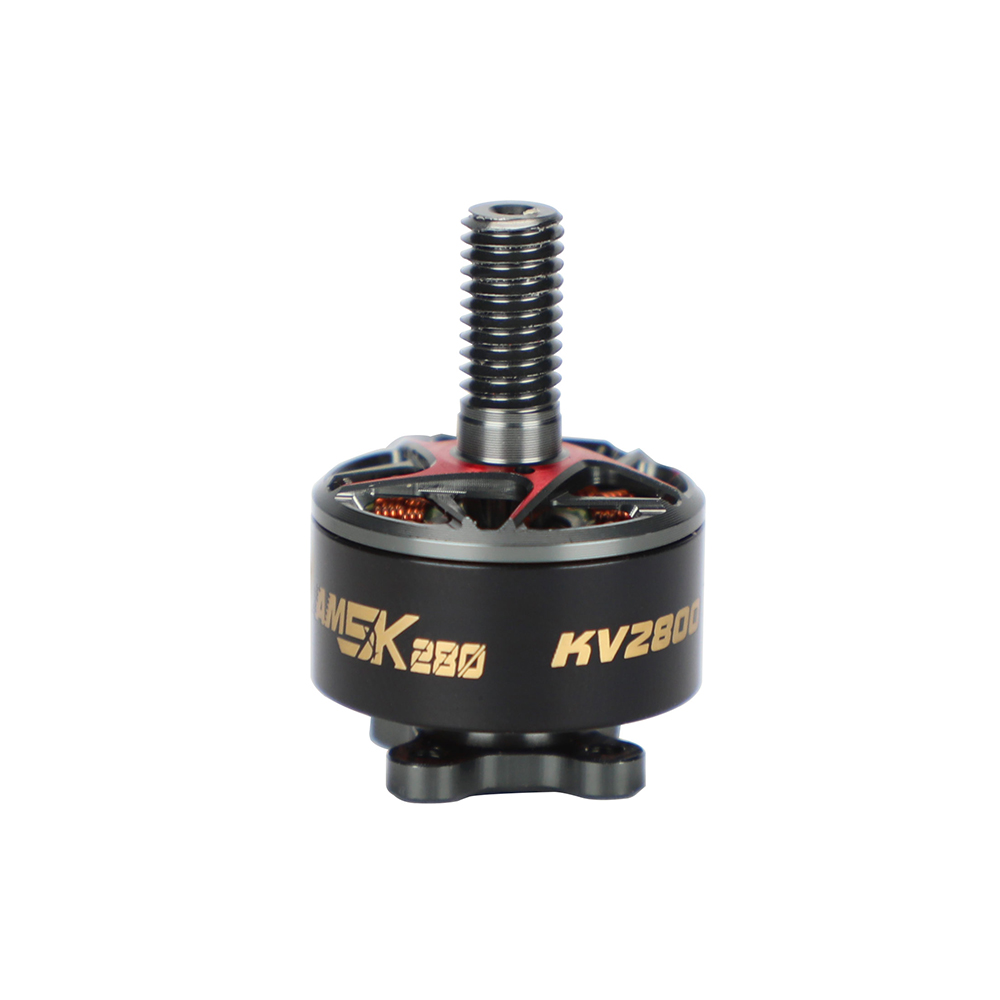

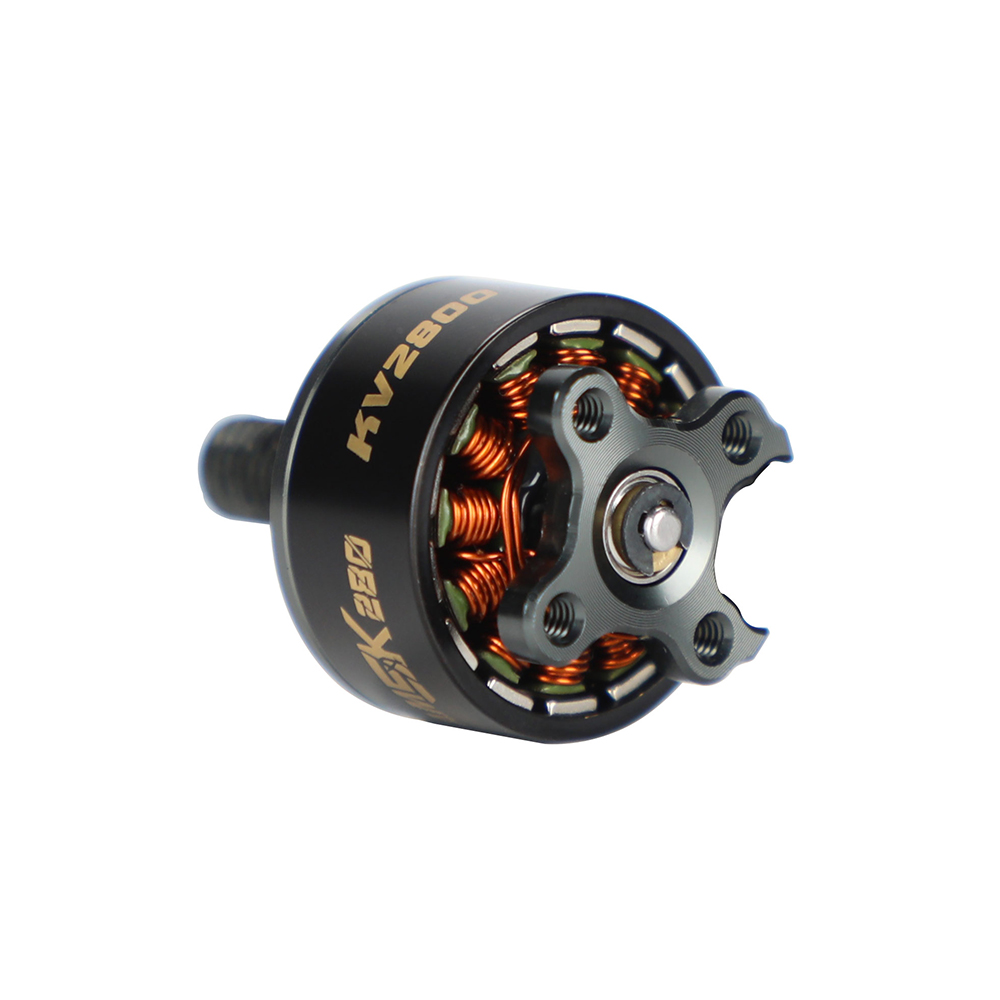

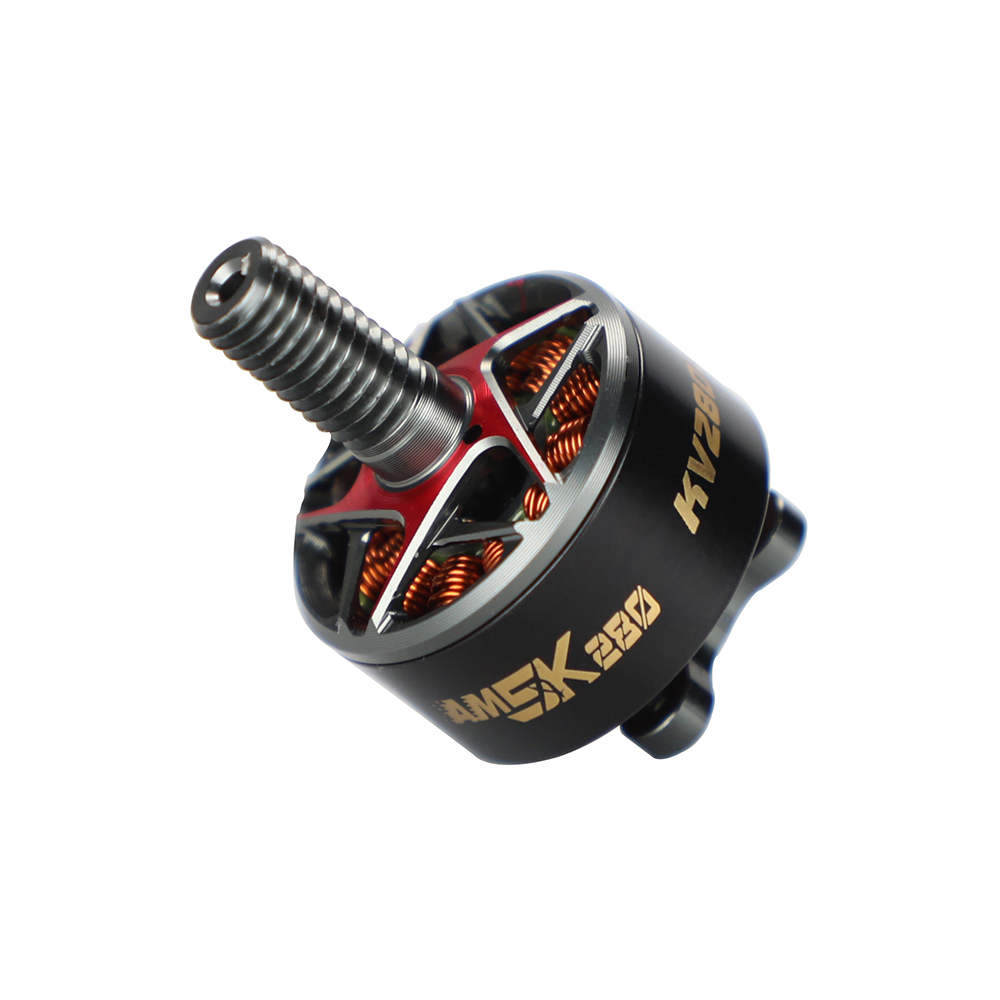

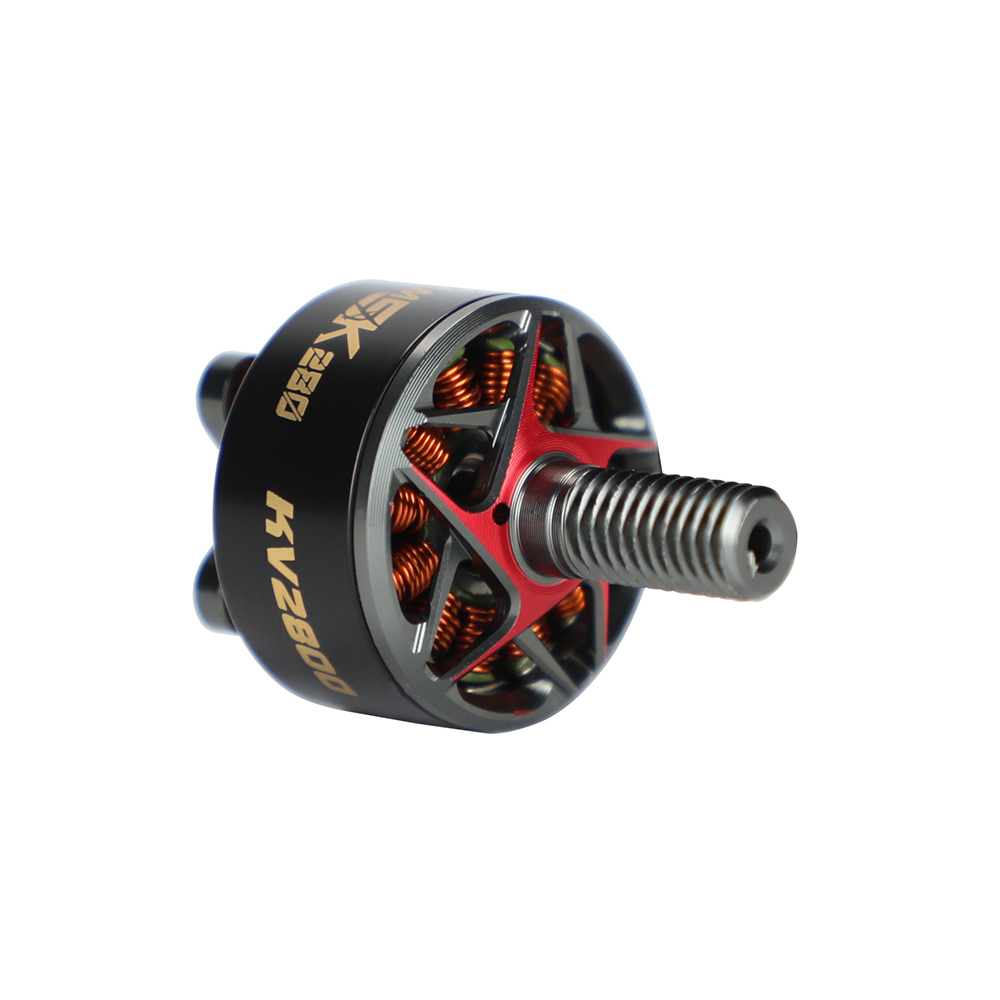

T-Motor AM5K 280 KV2800 Brushless Motor

High-Performance Propulsion for Competitive Gliders

The T-Hobby AM5K 280 (2800KV) is a premium, ultra-lightweight brushless motor meticulously designed for F5K and F5L competitive and sport gliders. Optimized for airframes with a 1.3m to 1.5m wingspan and a 180g to 350g take-off weight (AUW), this motor provides the instantaneous, reliable thrust required to reach thermal-catching altitudes quickly.

Engineered to Elevate Glide Performance

In glider competitions, every single gram matters. By stripping away unnecessary bulk, the AM5K 280 keeps its footprint incredibly light while boosting overall motor performance. Featuring a 20% enhancement in power efficiency and a 5% thrust improvement, it maximizes your battery output so you can focus entirely on tracking the wind and catching thermals.

Bullet Points / Highlights

• Designed for F5K & F5L Competitions: Specially optimized for high-end RC glider projects, offering the perfect weight-to-power balance needed for competitive sports and thermal soaring.

• Ultra-Lightweight Engineering: Weighing just 14.5g (including cables), this motor minimizes nose weight to significantly improve your glider’s overall glide ratio and aerodynamic performance.

• Exceptional System Efficiency: Delivers a 20% boost in efficiency and a 5% increase in max thrust, ensuring longer flight times and robust climbing capability.

• Vibration-Free Precision Balancing: Built to dynamic balance requirements standards of $le$4mg, reducing energy loss, protecting airframe structural integrity, and extending bearing life.

• High-Temperature Thermal Resilience: Equipped with 200 high-temperature resistant magnets and a 300V withstand voltage coil insulation test to endure aggressive, multi-round launch sequences.

Recommended Setups

• Recommended Aircraft Dimensions: 1.3m – 1.5m Wingspan Gliders

• Recommended Takeoff Weight Range: 180g – 350g

• Matched Folding Propeller: AMS 7×4 Carbon Fiber Folding Propeller

• Matched Prop Spinner: AM 25mm Aluminum Spinner

• Recommended ESCs:

  • AM5K 20A ESC (5.3g, Ultra-lightweight choice optimized for 2S builds)

  • AS5K 18A ESC (6.36g, Slim-profile choice supporting 2S-4S voltage setups)

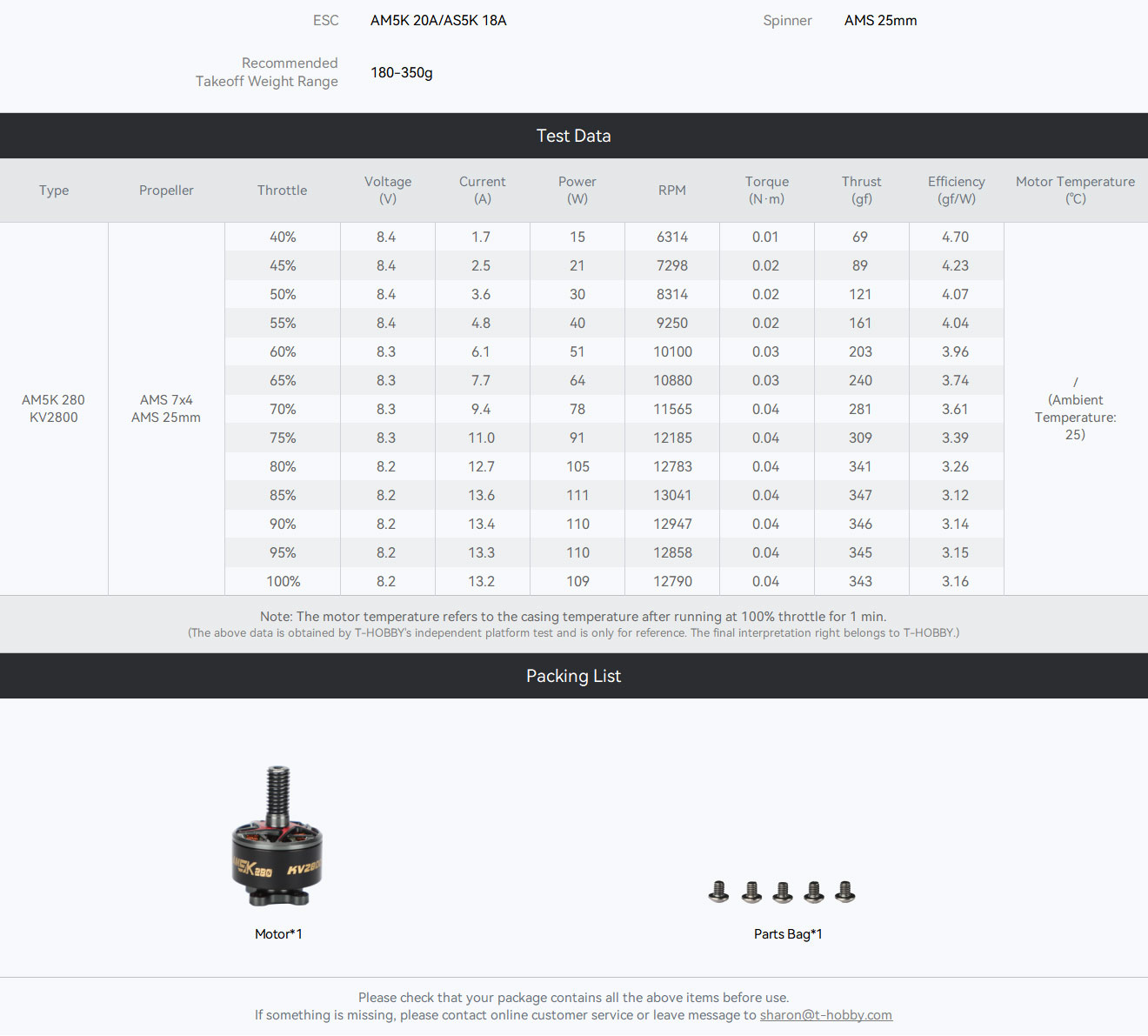

Packing List

• 1 x AM5K 280 (2800KV) Brushless Motor

• 1 x Mounting Screws & Hardware Parts Bag

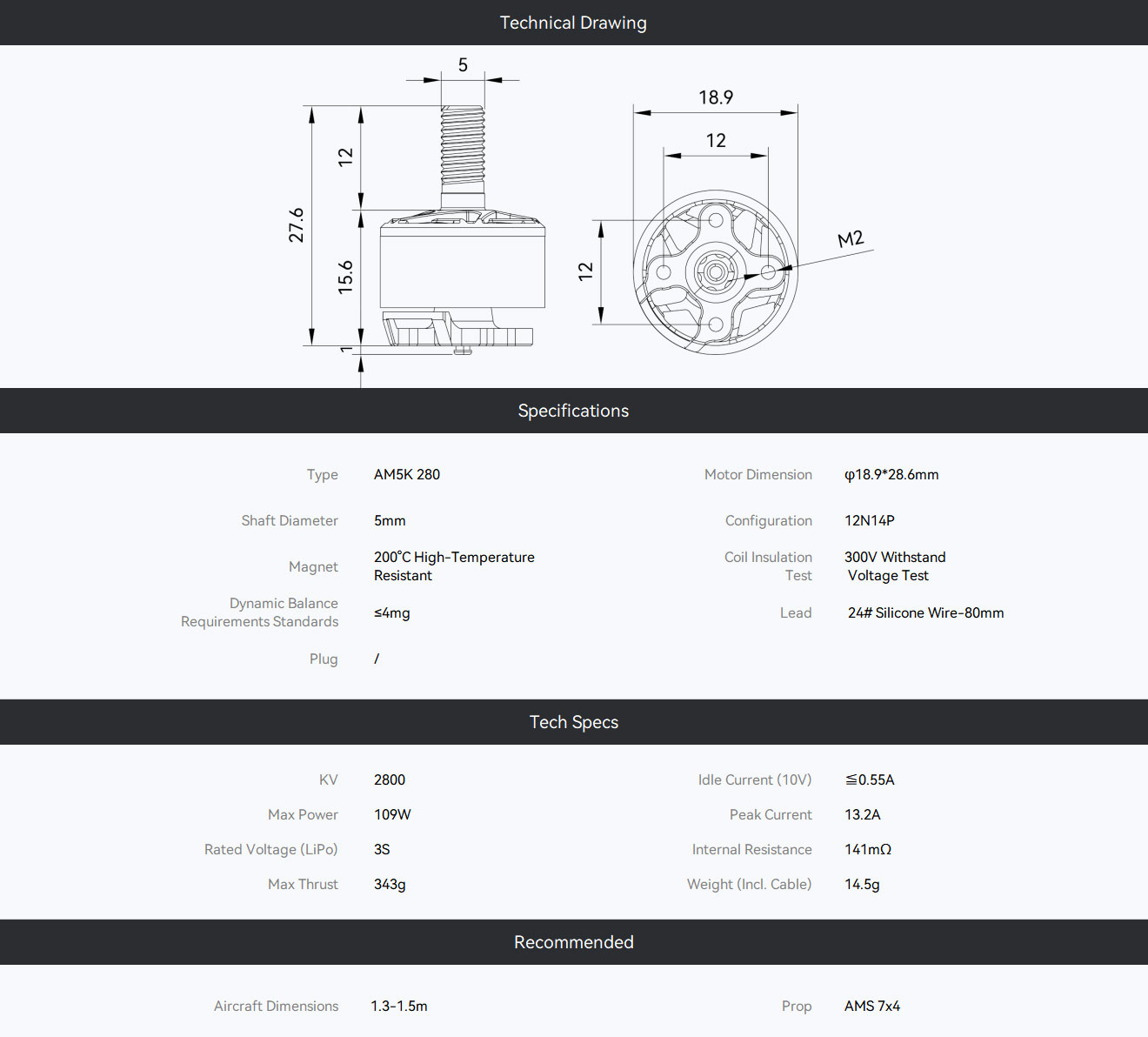

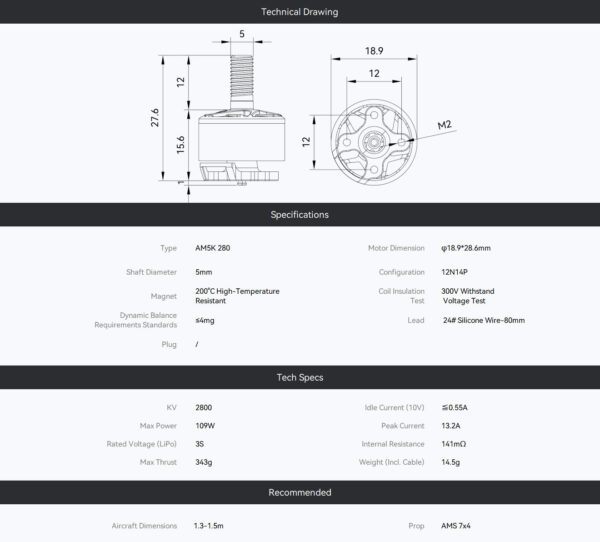

specification

Specifications
