Description

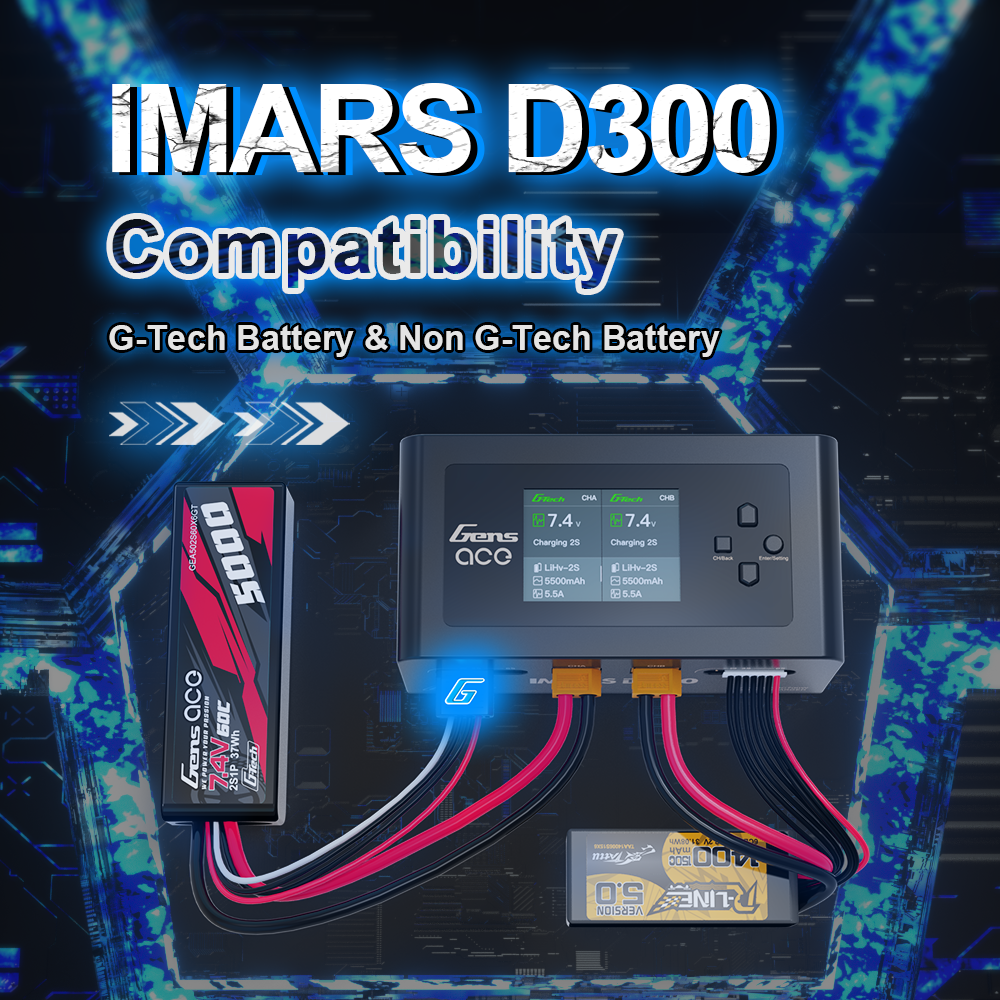

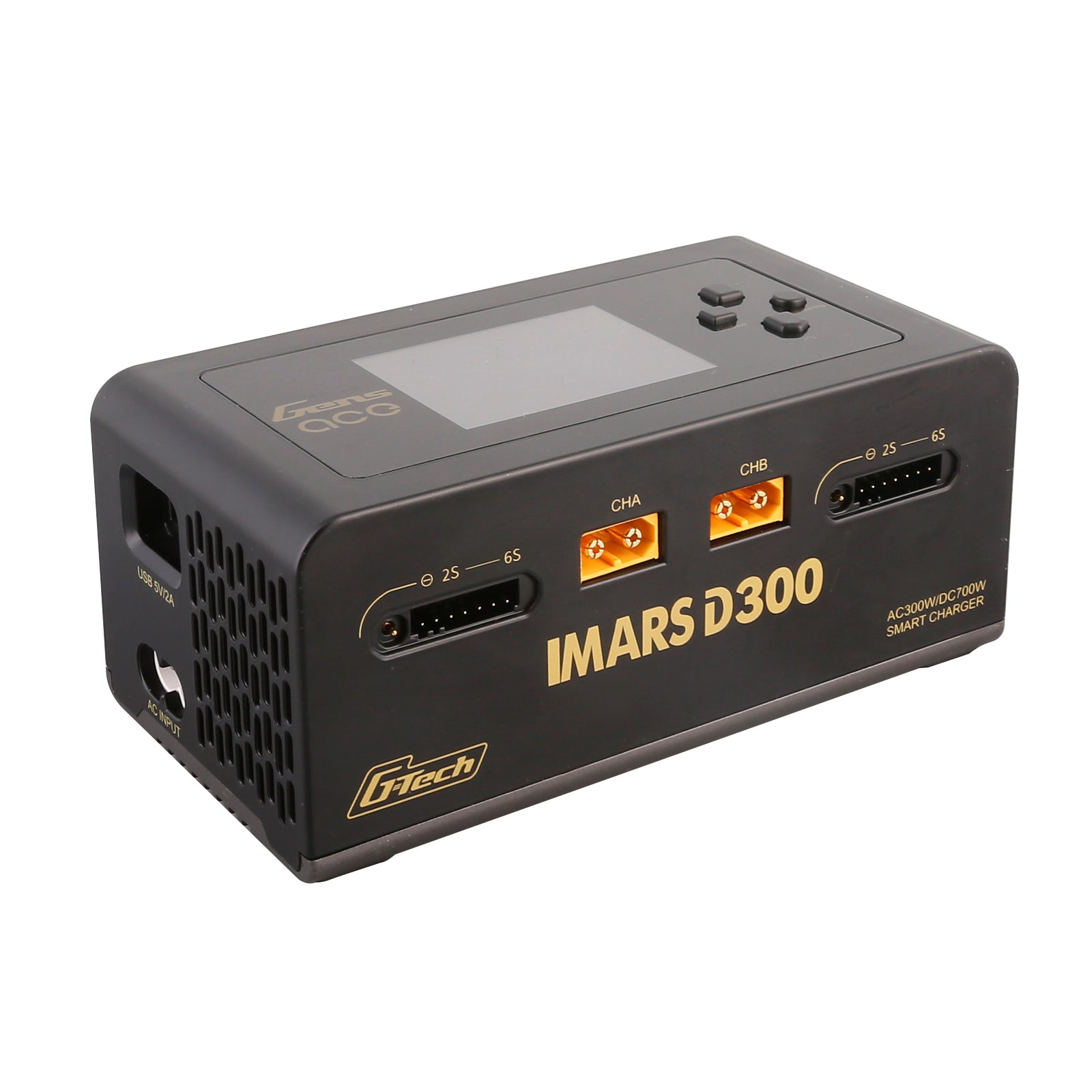

The iMars D300 Charger is a versatile and intelligent charger that supports both charging and discharging. As a member of G-Tech Eco; iMars D300 Charger is designed specifically for the G-Tech smart battery; but is also compatible with non-smart batteries.

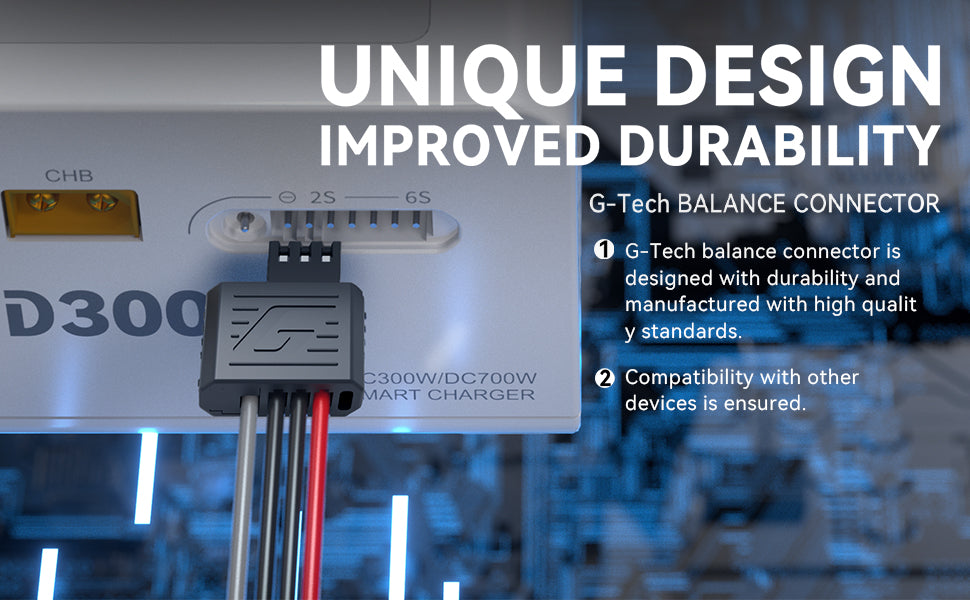

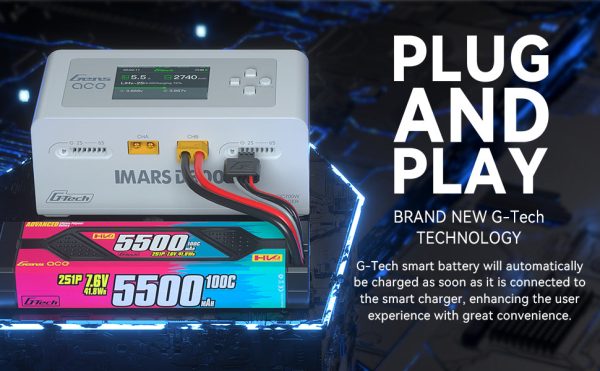

When a G-Tech smart battery is connected to the iMars D300 charger; the charger will automatically identify the battery type; voltage through the smart balance connector; and charging current recommended by the battery manufacturer. For non-smart batteries; it is necessary to manually select the battery type and the required working mode to get started.
The iMars D300 Charger offers a range of features; including dual channel AC/DC smart balance charging; a small and lightweight portable design; a wide-view IPS display; and high power charging.
The charger has seven operating modes: charge; discharge; balance; storage; ExtDischarge; SyncCharging; and digital power supply. It offers simple to use and operation.
Features:
- Dual Channel AC/DC Smart Balance Charger.
- Small & Lightweight Portable Design with wide-view IPS Display.

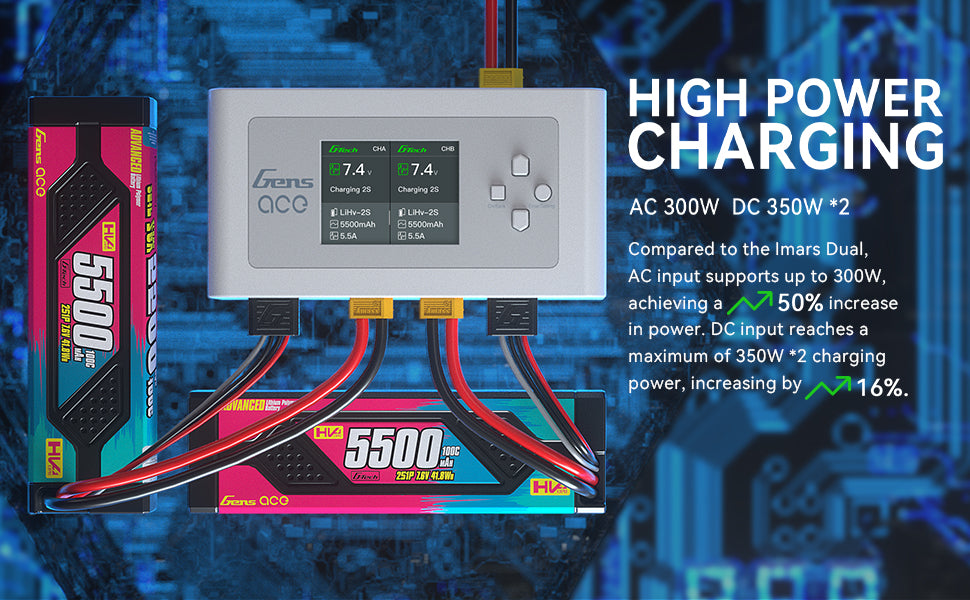

- High power charging; capable of Max 16 Amp charge rates for one channel; worldwide 100V-240V voltage versatility; AC 300 Watts; DC 700 Watts.
- External discharge feature available.
- Synchronous output; 2-in-1 Fast-charging.
- Built-in DC power source for different devices.
- Controlled heat dissipation system.
- Advanced safety features; UL94-V0 Flame Retardant Grade.
- Protection of Short circuit / Over current / Overcharge / Over voltage..
- Support Gens Ace G-tech smart charging.

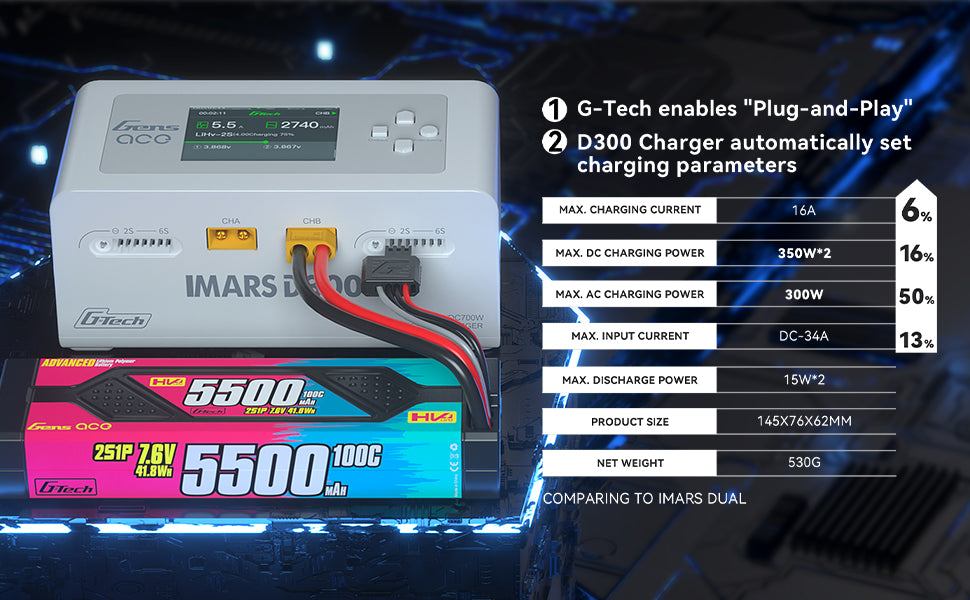

Specifications:
- Input Voltage: AC 100-240V; DC 7-30V
- output Voltage: DC 1~30V
- Max. Input Current: DC 34A
- Max. Discharging Power: 15W*2
- Maximum Charging Power: AC 300W; DC 350W*2
- Charge Current: 0.1-16A*2
- Discharge Current: 0.1~3A*2
- Cell Balancing: 1~6s
- USB Output: 5V / 2.4A
- Display Type: 2.4 inch IPS LCD Display
- Supported Battery Chemistry: LiPo?/ LiHV?/ LiFe 1~6S;?NiMH? 1~16S
- Dimensions: 145x76x62 mm
- Product Net Weight: 530g
- Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
iMars D300 Charger Review:
G-Tech Introduction Video:
Our services:
1. Your orders will be dispatched via UPS from Germany directly.
2. Fast shipping and excellent local after-sale service guaranteed in Europe.
3. Service-priority in the online shop; like the long warranty period and the lower price. We provide 1 year warranty; there would be a special discount provided for orders over 1 year.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/heli/fpv type. Very High according to capacity/weight. In fact; we are specialists in High Power Lipo Batteries. It is our unique technology; the highest power of our battery is 100C. Another technology is our batteries are able to be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Gens Ace and its’ partners fulfill the ISO9001; ISO14001 standards.
Caution:
Don’t put it beside the high-temperature condition.
Don’t throw it into the fire.
Don’t throw it into the water.
