Name: E40-S 1Y kv3750
SKU: 62100522
Availability: OutOfStock

Beschreibung

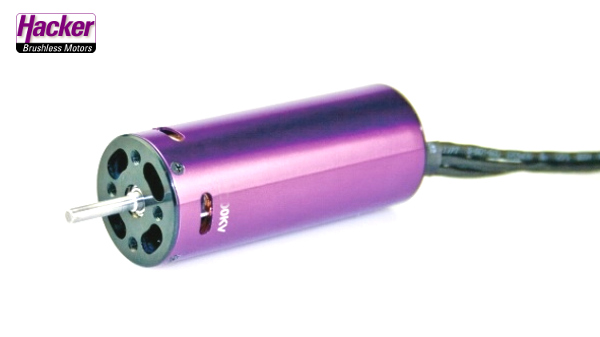

Der 4-polige 3-4S Impellermotor für 70mm Impeller:

E40-S 1Y

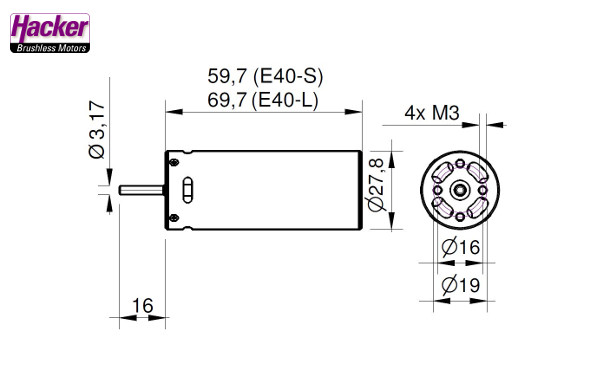

Länge: 59,7mm

Durchmesser: 27,8mm

Gewicht: 150g

Kv: 3750

Polzahl: 4

R(I): 10mOhm

I(0)@8,4V: 2,5A

empfohlenes Timing: 10-15°

Wellen Durchmessser: 3,17mm

freie Welle Länge: 16mm

Messwerte: siehe

Stream-Fan 70/3750

Zusätzliche Informationen

Gewicht [g]	150
Außendurchmesser [mm]	27.8
Polanzahl	4
Achsdurchmesser [mm]	3,17
Länge [mm]	59.7
Propmitnehmer	Nein
Befestigungskreuz	Nein
Backmount montierbar	Nein
Frontmount montierbar	Ja
Goldstecker mm (empfohlen)	4
Drehzahl / Volt [kV] (kv)	3750

Produktsicherheit

Herstellerinformationen

Hacker Motor GmbH
Schinderstrassl 32
84030 Ergolding
Bayern Deutschland
info@hacker-motor.com
https://www.hacker-motor.com/

Rezensionen

Es gibt noch keine Rezensionen.

Schreibe die erste Rezension für „E40-S 1Y kv3750“
