DETAILS
Application
| Car. Airplane. Heli (EP / Gas Engine) |
Specifications
| Torque At 4.8V | 3.5 kg-cm / 49 oz-in |
| Torque At 6.0V | 4.4 kg-cm / 61 oz-in |
| Speed At 4.8V | 0.25 sec / 60° |
| Speed At 6.0V | 0.22 sec / 60° |
Power Supply
| Operating Voltage Range | 4.8V ~ 6.0V |
Control Specification
| Dead Band Width | 4us |
Mechanical Specifications
| Ball Bearing | Plastic Ring |
| Gear | Plastic Gears |
| Horn / Gear Spline |
25 Teeth ( Same as F-Type ) |
Physical Specifications
|
Dimension (mm) |
40.5 x 20 x 38.5 mm / 1.60 x 0.78 x 1.54 in |
|
Weight (gram) |
42 ± 1 grams / 1.48 oz |
|

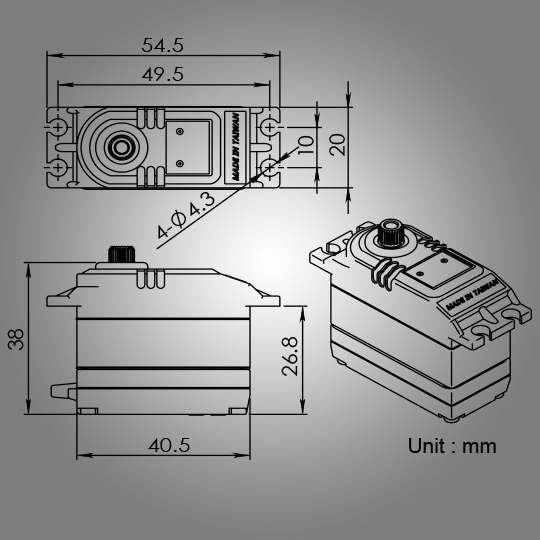

Product Picture / Dimension Sketch |
.png)
|
