Description

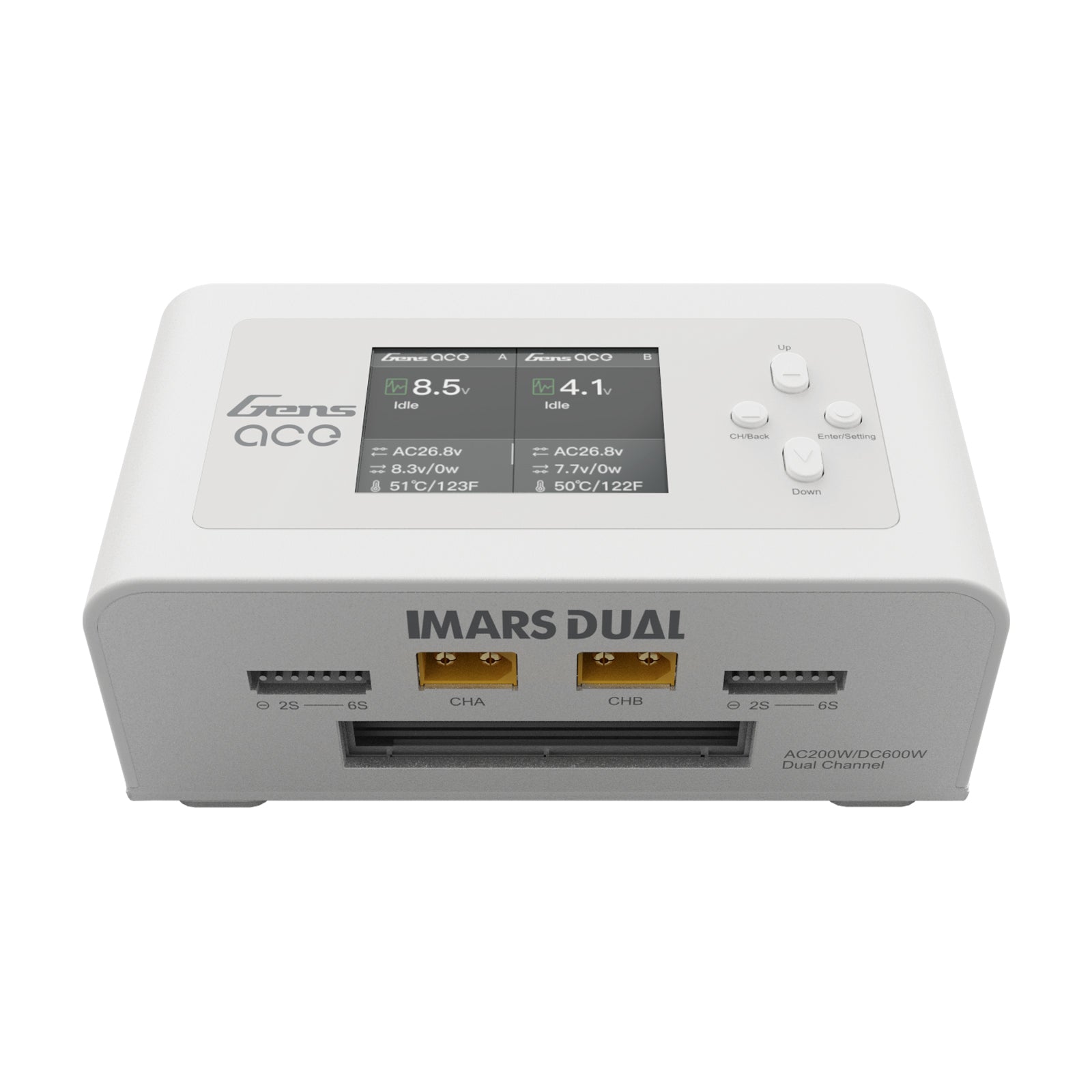

Imars Dual Battery Charger supports 2 channel charging and discharging: DC port power supply supports maximum single port 300W charging; and AC power supply supports intelligent distribution of total power.
The power rate is 200W (2 channels); the maximum charging current is 15A; the charging current is adjustable; and the use and operation are simple; 7 operating modes of the products include charge; discharge; balance; storage; ExtDischarge; SyncCharging; digital power supply.
During the charging process of the product; the current task total voltage; charging/discharging current; working time and other information can be displayed in real time through the display window; It can also query real-time single-cell voltage information; internal resistance; and temperature; which is convenient for users to understand battery performance and charging status.It is so convenient to store and transport that you can take it for weekly racing or traveling abroad.
The heat dissipation design can effectively ensure the continuous stable and reliable operation of the product. Suitable for any RC Car / FPV / Aircraft / Heli / Drone / UAV Batteries.
Review:
Video from @German RC Playground (German)
Video from @Painless360 (English)
Features:
1. Dual Channel AC/DC Smart Balance Charger – Europe Version.
2. Small & Lightweight Portable Design with wide-view IPS Display.
3. High power charging; capable of Max 15 amp charge rates for one channel; worldwide 100V-240V voltage versatility; AC 200 Watts; DC 600 Watts.
4. External discharge function.
5. Synchronous output; 2-in-1 Fast-charging.
6. Built-in DC power source for different devices.
7. Controlled heat dissipation system.
8. Temperature compensation function.
9. Advanced safety features; UL94-V0 Flame Retardant Grade.
Protection of Short circuit / Overcurrent / Overcharge / Overvoltage
Specifications:
-Dimensions: 145x76x62mm
-Net Weight: 530g
-Input Voltage: AC 100-240V; DC 7-30V
-Output Voltage: DC 1~30V
-Max Input Current: DC 30A
-Max Discharging Power: 15W*2 (Main port 6W*2; Balance port 9W*2)
-Maximum Charging Power: AC 200W; DC 300W*2
-Charge Current: 0.1-15A*2
-Discharge Current: 0.1~3A*2
-Cell Balancing: 1~6s
-USB Output: 5V/2.4A
-Display Type: 2.4 inch IPS LCD Display
-Supported Battery Chemistries: LiPo/LiPo/LIHV/LiFe 1~6S; NiMH/Cd 1~16S
-Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
Our services:
1. Your orders will be dispatched via UPS from Germany directly.
2. Fast shipping and excellent local after-sale service guaranteed in Europe.
3. Service-priority in the online shop; like the long warranty period and the lower price. We provide 1 year warranty; there would be a special discount provided for orders over 1 year.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/heli/fpv type. Very High according to capacity/weight. In fact; we are specialists in High Power Lipo Batteries. It is our unique technology; the highest power of our battery is 100C. Another technology is our batteries are able to be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Gens Ace and its’ partners fulfill the ISO9001; ISO14001 standards.
Caution:
Don’t put it beside the high-temperature condition.
Don’t throw it into the fire.
Don’t throw it into the water.
Click for more Smart Balance Battery Charge. If you are in the USA; you can check here (GensAce Imars Dual Channel Smart Balance Charger) at the USA warehouse.
