Description

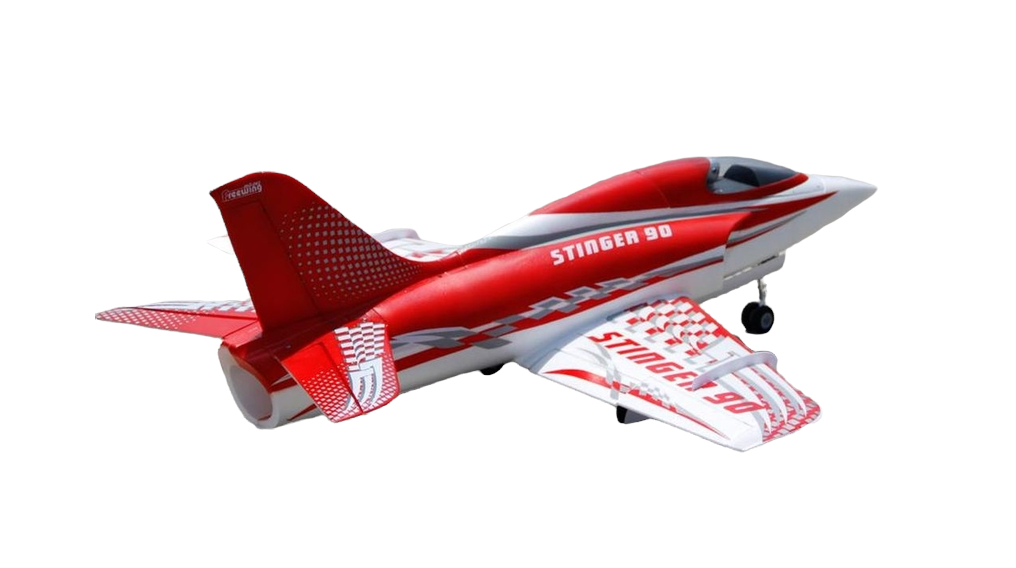

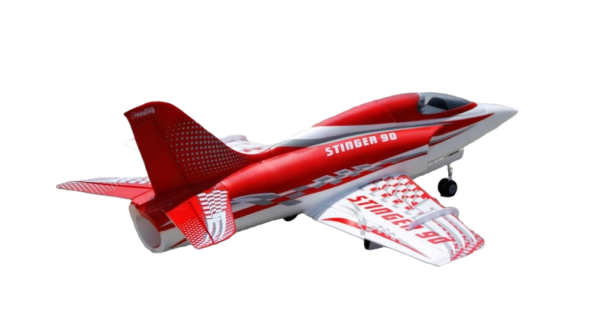

Stinger 90 9-Blade High Performance 90mm EDF Jet from Freewing – PNP – FJ30513P
Version Info: This is the High Performance version which includes a powerful 3672-1900Kv inrunner motor with new lightweight 9-blade fan.
If you are a RC Pilot seeking the highest performance EDF jet available, look no further than the Freewing Stinger 90 Extreme Performance Jet. Developed from the ground up for speed, realism, and performance, the Stinger 90 combines all the latest RC plane technology into sleek sport jet airframe. This new High Performance version boasts a powerful 3672-1900Kv inrunner motor with new lightweight 9-blade fan.
Freewing spared no expense with electronics in this plane, they are using a 130A Hobbywing ESC and 17gram metal gear servos. The nose and main landing gear are all metal and include shock absorbing struts to protect the gear during hard landings. Other premium features include super bright LED landing lights, sequenced landing gear doors, and detailed cockpit. Motion RC requested a “top of the line” performance EDF jet and Freewing Model delivered with the Stinger 90 Extreme Performance Jet. Be the first at your flight field to own what is surely one of the best EDF jets available today.
Visit the Official Freewing Stinger 90 Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
FEATURES:
- NEW! Now includes High Performance 3672-1900Kv inrunner motor with new lightweight 9-blade fan
- 130 Amp Hobbywing ESC with 8A UBEC
- Flight surfaces are controlled with 17g metal gear servos for precise movement, strength and long life
- Ultra-bright LED landing lights for enhanced realism and dawn/dusk maneuvers
- All metal electronic retractable landing gear with shock absorbing struts
- Upgraded pushrod clevis and metal ball head buckle provide a robust connection between servo and control surface and eliminate “play”
- Full function flaps allow shorter take-off distances and slow, scale landings
- Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
- Nylon hinges on all control surfaces (superior to foam hinges)
- High visibility graphics package make the Stinger 90 easy to see even at high speeds
- Motor, servos, ESC and EDF come pre-installed for your convenience.
REQUIRES:
- 6 Channel radio – select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver – select a minimum 6 channel receiver from our Receiver Collection
- 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 Connector – EPR50006
- 6 Cell compatible battery charger – select a minimum 6 cell (6S) charger from our Charger Collection
PRODUCT SPECIFICATIONS:
Wingspan | 1130mm / 44.5in |
Length | 1325mm / 52.2in |
Flying Weight | 2800g / 98.77oz |
Power System | 3672-1900Kv Brushless Inrunner Motor |
Speed Control | 130A ESC, 8A UBEC, EC5 Connector |
Propeller / EDF | 90mm EDF with 9 Blade Fan |
Servos | 9g hybrid gear standard with 200mm lead : nose gear door, nose gear steering 17g metal gear standard with 500mm lead : left aileron, right aileron 17g metal gear reverse with 100mm lead : right elevator 17g metal gear standard with 100mm lead : left elevator 17g metal gear standard with 200mm lead : rudder 17g metal gear reverse with 400mm lead : right flap 17g metal gear standard with 400mm lead : left flap |
Landing Gear | Full metal retractable main and steerable nose gear with shock absorbing struts |
Required Battery | 6S 22.2V 5000mAh 35C LiPo |
Required Radio | 6 Channel radio |
Rudder | Yes |
Flaps | Yes |
Ailerons | Yes |
Lights | Yes |
Hinge Type | Nylon hinges on all control surfaces |
Material | EPO Foam |
